ESTABLISH A LONG DISTANCE WI-FI CONNECTION

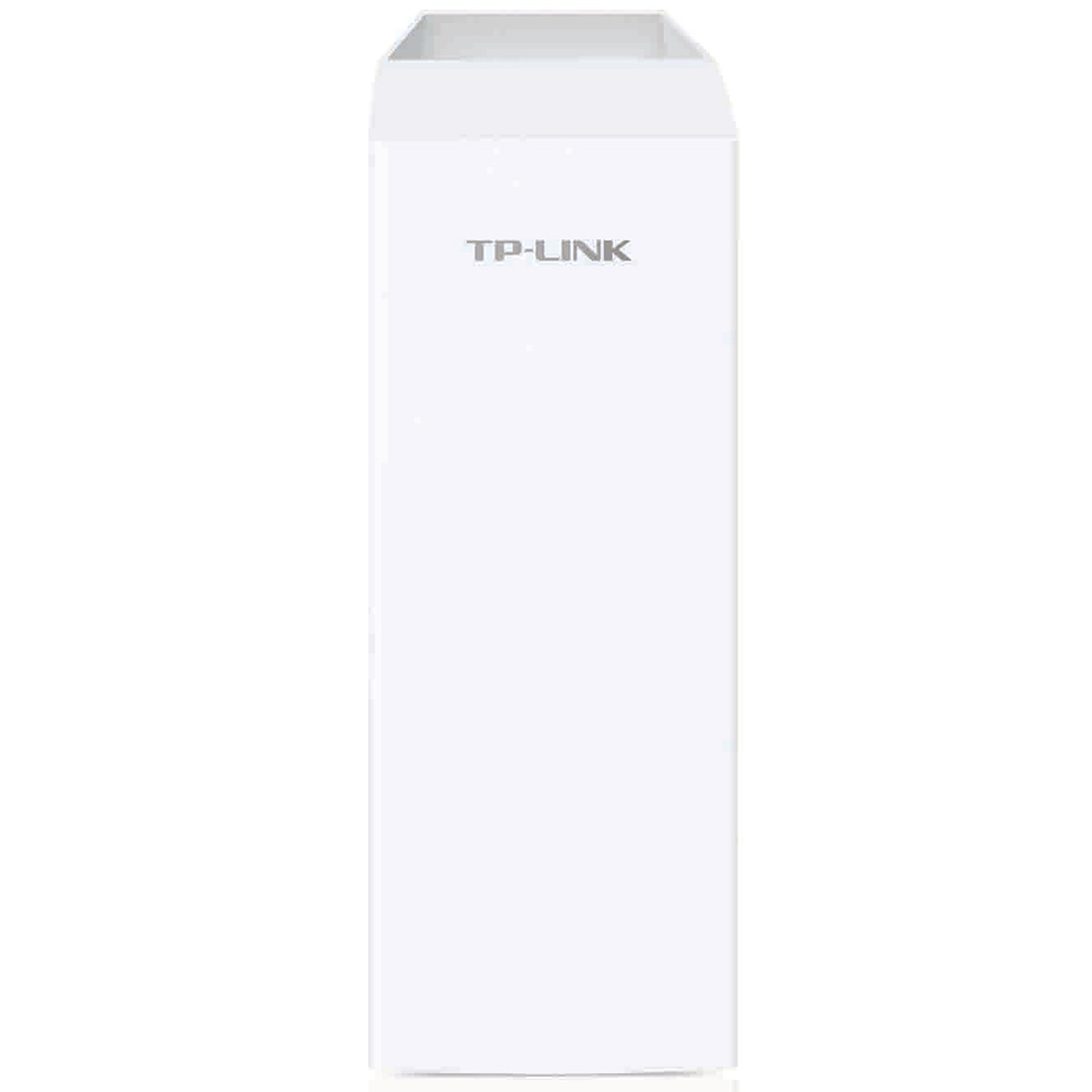

The TP-LINK CPE210 outdoor CPE is dedicated to entry-level professional Wi-Fi networks. With its centralized management application, it is the ideal CPE for point-to-point or point-to-multipoint Wi-Fi coverage applications. Professional performance combined with a user-oriented design makes the CPE210 an ideal purchase for both business and home users.
QUALITY DESIGNWith Qualcomm Atheros enterprise series components, high-gain antennas and high-quality materials, a specially designed housing and PoE power supply, CPE210 is specifically designed for outdoor use and can operate perfectly in most latitudes, with operating temperatures ranging from -30? to 70?. In advanced mode, the radio device designed for high power broadcasting (27dBm/500mW) and high reception sensitivity (down to -95dBm) pushes back the traditional range limits of Wi-Fi n transmissions, and makes the CPE210 ideal for outdoor Wi-Fi network uses. Specifically designed for outdoor use, ideal for long distance data transmissions, the CPE210 has been tested to over 15km. |  |
 | MAXTREAM TDMA TP-LINK TECHNOLOGYAs the number of users connected to the network increases, the Wi-Fi network load and collisions increase, resulting in a drop in effective throughput between the CPE and the connected users and impacting the user experience. To mitigate these effects, the CPE210 implements MAXtream TDMA TP-LINK technology. |
PHAROS CONTROL - CENTRALIZED MANAGEMENT SYSTEMThe CPE210 comes with centralized management software that helps users easily manage all compatible devices in their network from a single computer. Functions such as device discovery, status monitoring, software updates and network maintenance can be managed using the Pharos Control software. |  |
MAIN FEATURES:
- Internal directional MIMO 2x2 bi-polarised 9dBi antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- Optimised design for long range transmissions exceeding 15km (depending on environmental factors)
- TP-LINK Pharos MAXtream TDMA (Time Division Multiple Access) technology, improving throughput, capacity and latency performance, ideal for point/multipoint use
- Pharos control centralized software management system
- Operating modes: Access Point, Client, Repeater, Access Point Router, Access Point Client Router (WISP)
- Weatherproof external enclosure with IPX5 certification
- One Ethernet port and grounding connection
- 6000V lightning protection, 15KV ESD (Electro Static Discharge) protection
- Passive PoE adapter allowing up to 60m between the CPE and its power source for remote reset
- Supports : WEP , WPA/WPA2, WPA-PSK/WPA2-PSK
- Channel width selection: 5, 10, 20, 40MHz
- Rate monitor, spectrum analyser, speed test and ping tool
- Easy antenna alignment with Wi-Fi signal indicators in the web interface
